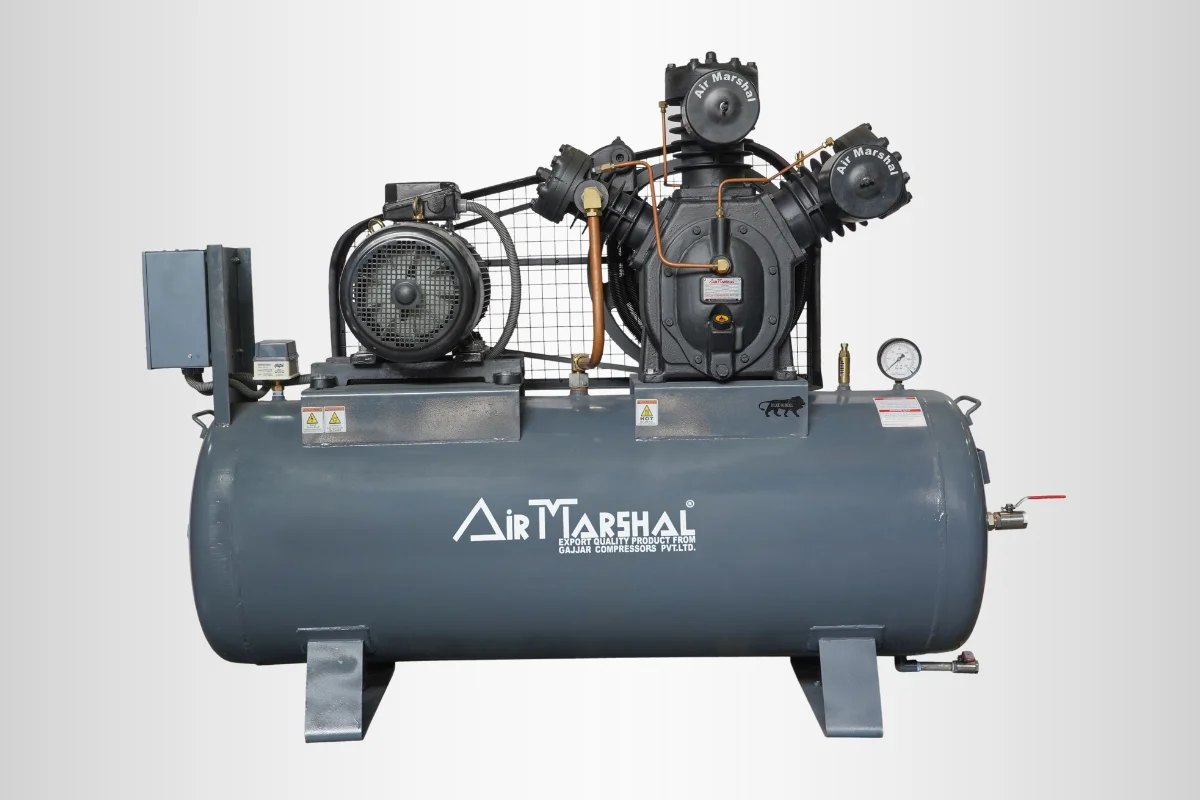

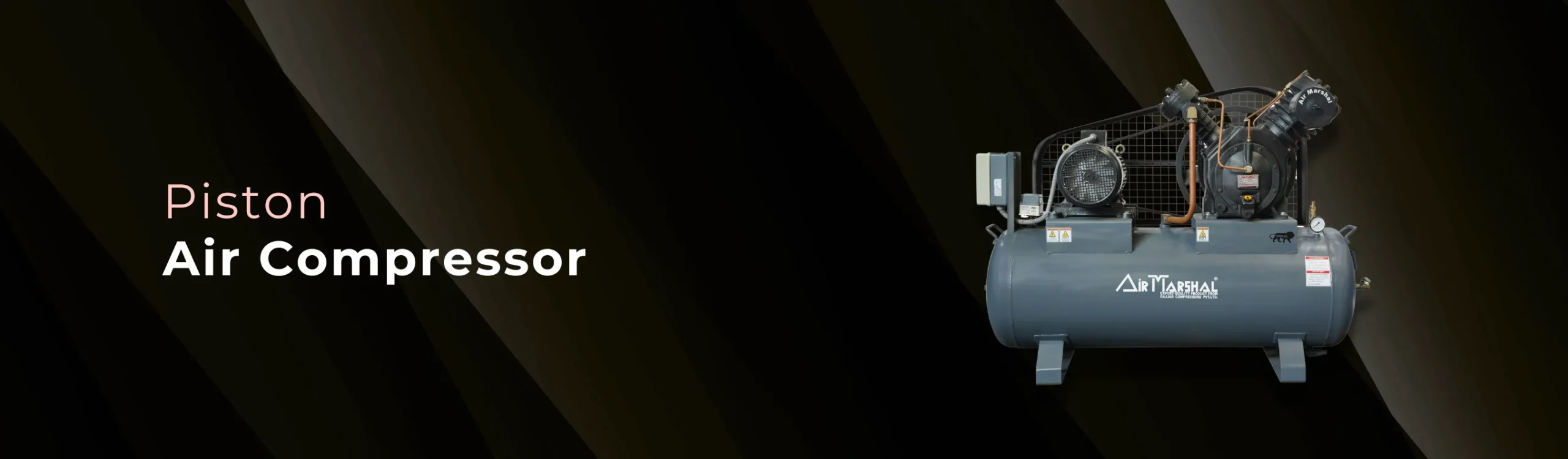

Gajjar Compressors Pvt. Ltd. is a leading manufacturer and exporter of Piston Air Compressors. We specialize in the design, development, and manufacturing of high-performance piston air compressors tailored for industrial, commercial, and workshop applications. With a strong focus on quality, durability, and efficiency, our compressors are built to deliver consistent air output under the most demanding conditions. We don’t just build piston air compressors; we engineer robust, reliable, and efficient power solutions designed to meet the rigorous demands of modern industry. Air-marshal’s range of piston air compressors can be used in a variety of settings including for home-based DIY projects, small scale contract work as well as for large industrial units.
Piston air compressors do not have a continuous duty cycle and works for about 30 min for every hour of cycle. It needs a proper cooling period between cycles without which the compressor may malfunction. Despite this, it is best suited for small-scale use because small shops and homes most often do not require continuous work cycle.
Our piston air compressors come in three types: Single Stage Low Pressure Compressor, Two Stage Medium Pressure Compressor and Multi Stage High Pressure Compressor.
Our piston or reciprocating air compressor is the simplest type of air compressors, and is widely used in small industrial units. It is economical and cost effective, and is commonly found in small workshops, body and repairing shops, tire shops and local manufacturing facilities.

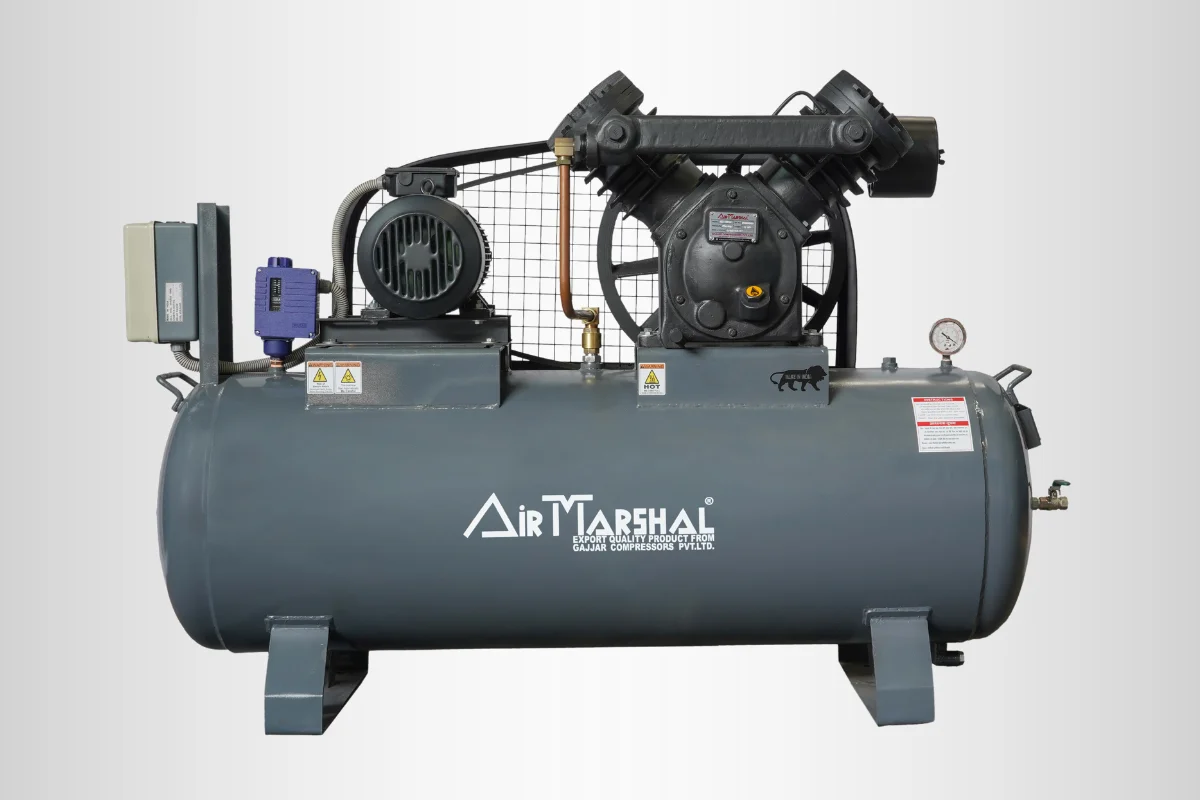

These single stage low pressure compressors are used in pneumatic press industries, chemical industries, instrumentation, process, liquid transfer, spray painting, boiler fuel oil atomization, water pumping, irrigation, air jet cleaning, dairies, air lift pumps, clay & potteries, etc.
| Model No. | Motor (HP) | No.of Piston | Pressure (PSIG) | Piston Displacement (CFM) | Receiver (LITRES) |
|---|---|---|---|---|---|
|
GC-101 |
1.0 |
1 |
150 |
3.2 |
70 |
|
GC-102 |
1.0 |
2 |
150 |
4 |
70 |
|
GC-202 |
2.0 |
2 |
150 |
6.2 |
135 |
|
GC-184SS |
3.0 |
2 |
150 |
9 |
135 |
|
GC-285 |
3.0 |
2 |
100 |
13.2 |
135 |
|
GC-294 |
5.0/7.5 |
2 |
80 |
24.0/34.0 |
200 |
|
GC-305 |
7.0/10.0 |
2 |
60 |
36/46 |
240 |
|
GC-57S2 |
12.5 / 15.0 |
2 |
40 |
65.8/88.0 |
300 |
|
GC-65S2 |
15.0 / 20.0 |
3 |
40 |
99.0/132.0 |
500 |
|
GC-65S2D |
30.0/40.0 |
3+3 |
40 |
198.0/264.0 |
750 |

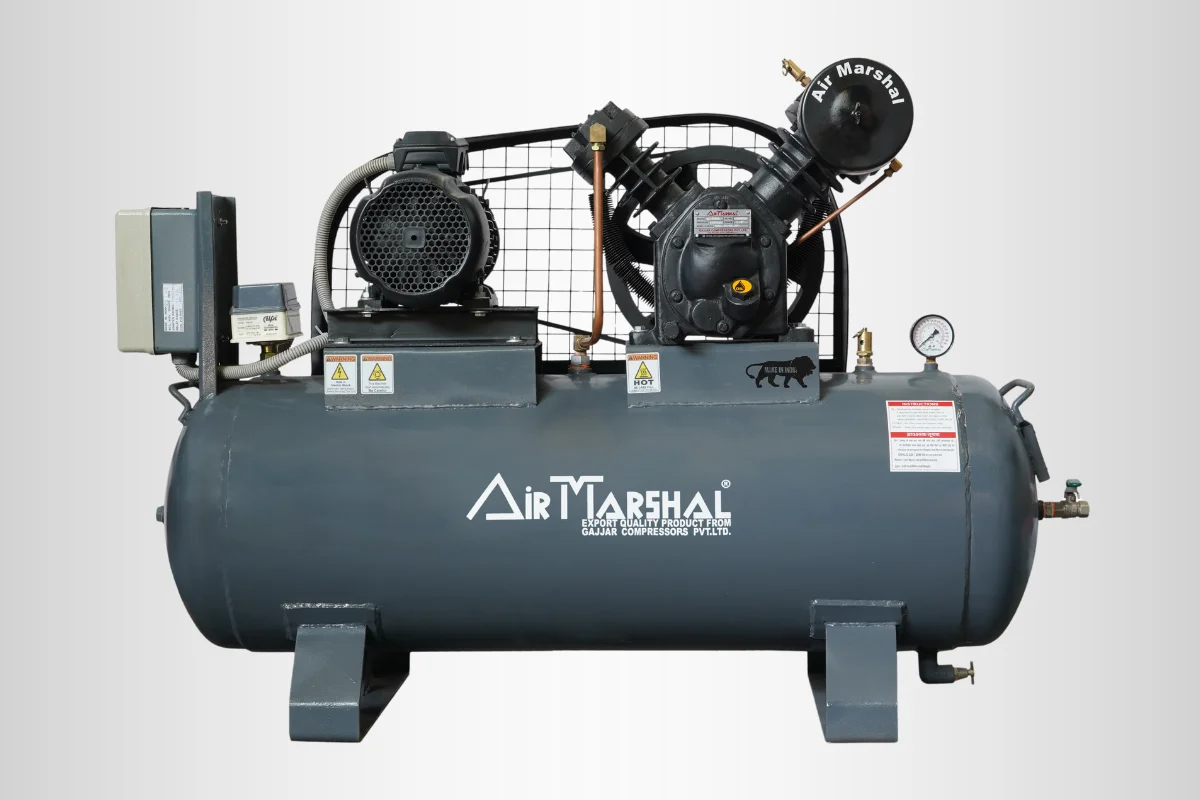

Two stage compressor consist of two or more cylinders. The atmospheric air enters into LP cylinder through inlet filter & valves and passes to HP cylinder through intercooler for final pressure. The highly efficient intercooler tube provides maximum heat dissipation between stage. These compressors are useful in textile, plastic industries, paper industries, spray painting blowering, cleaning, tyre inflating, pneumatics, ceramics, automobiles, foundries, pharmaceuticals, CNC, VMC & Plasma Cutting, Sand blasting, Blow Molding Service stations, etc.
| Model No. | Motor (HP) | No.of Piston | Pressure (PSIG) | Piston Displacement (CFM) | Receiver (LITRES) |
|---|---|---|---|---|---|
|
GC-284 |
2.0 / 3.0 |
2 |
175 |
6.7 / 9.8 |
160 |
|
GC-2390 |
3.0 / 5.0 |
2 |
175 |
8.9 / 11.0 |
160 |
|
GC-292 |
5.0 |
2 |
175 |
17.3 |
200 |
|
GC-2525 |
5.0 / 7.5 |
2 |
175 |
17.3/22.0 |
200 |
|
GC-303 |
7.5 |
2 |
175 |
23.8 |
240 |
|
GC-2595 |
7.5 / 10.0 |
2 |
175 |
25 / 33 |
240 |
|
GC-2650 |
10 |
2 |
175 |
30 |
300 |
|
GC-121Tz |
10.0 / 12.5 |
2 |
175 |
32.9 / 44.0 |
300 |
|
GC-7150 |
12.5 / 15.0 |
2 |
175 |
48 / 60 |
300 |
|
GC-65T |
15.0 / 20.0 |
3 |
175 |
56 / 76 |
500 |
|
GC-75T |
25.0 |
3 |
175 |
90 |
500 |
|
GC-65TD |
30.0 / 40.0 |
3+3 |
175 |
112 / 152 |
750 |
|
GC- 75TD |
50.0 |
3+3 |
180 |
180 |
750 |

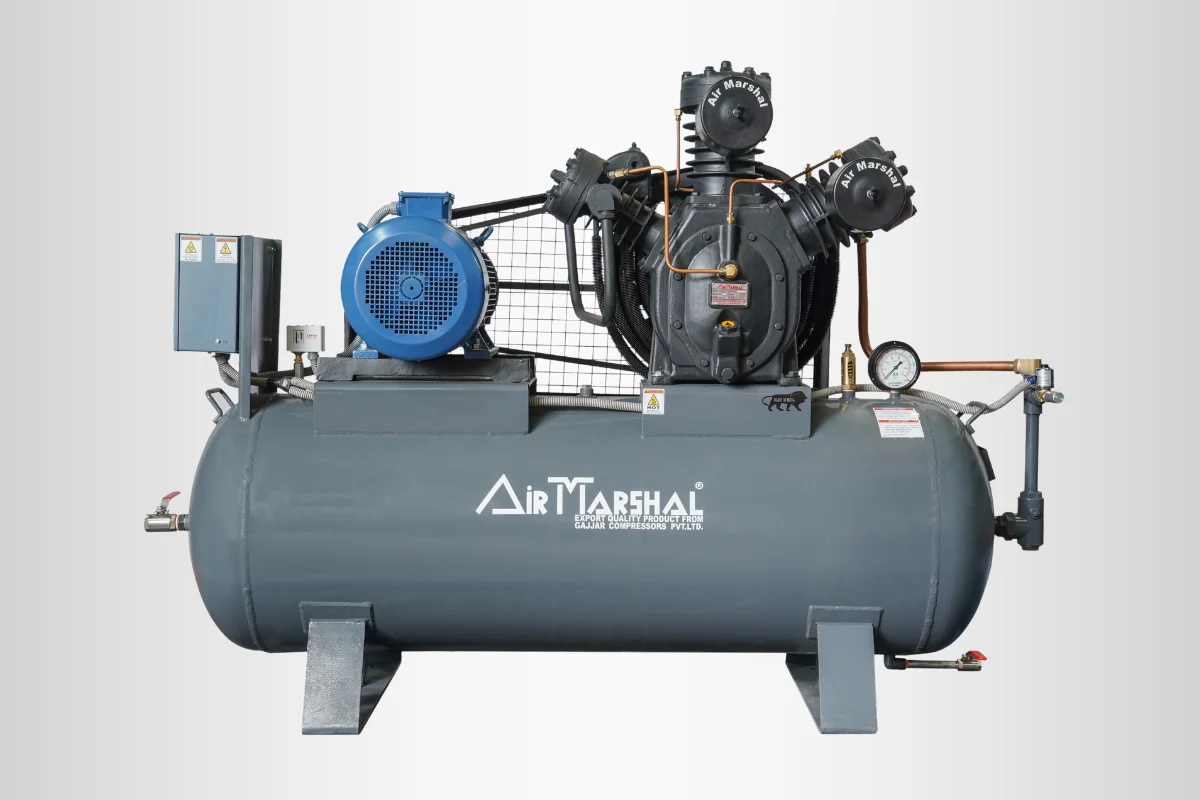

Multistage heavy-duty compressors are designed for high pressure operation up to 70 kg/cm2g (1000 psig). They are useful in valve & system testing, engine starting, laboratory test work, space & aviation industrial air blast circuit breaking, dairy, marine & military applications, pet bottling, gas transmission & distribution, defense, shipyards, oil exploration, pneumatics, etc
| Model No. | Motor (HP) | No.of Piston | Pressure (PSIG) | Piston Displacement (CFM) |
|---|---|---|---|---|
|
GC-281 |
3.0 |
2 |
500 |
7.4 |
|
GC-301 |
5.0 |
2 |
500 |
10.8 |
|
GC-57T2 |
7.5 / 10 / 12.5 |
2 |
500 |
24/30/36 |
|
GC-65THP |
15 / 20 |
3 |
400 |
54/70 |
|
GC-65THPD |
30 / 40 |
3+3 |
400 |
108/140 |
|
GC-65T2 |
15 / 20 |
3 |
1000 |
41 / 49 |
|
GC-65T2D |
30 / 40 |
3+3 |
1000 |
82/98 |
